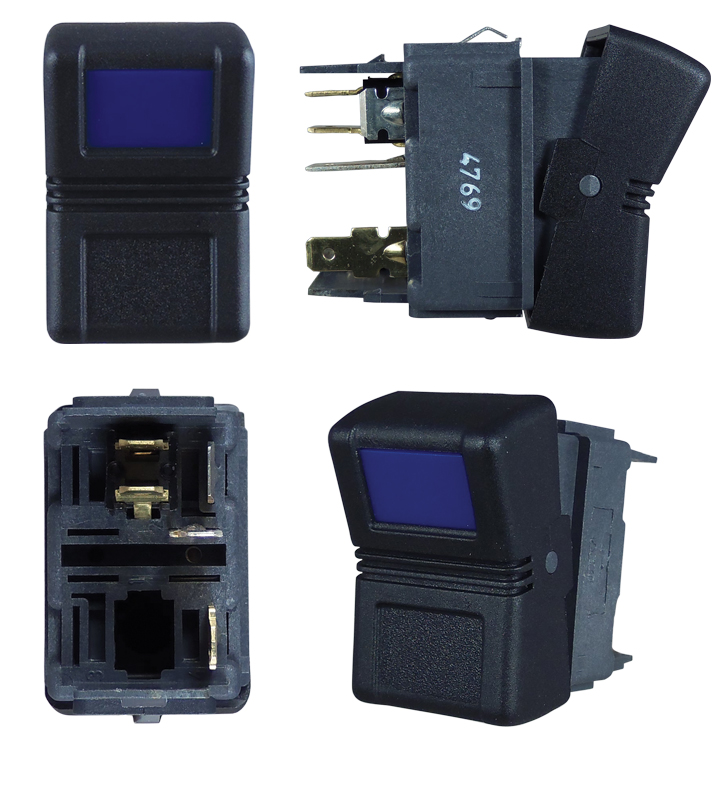

NP Series 4769 Flush Mount

The NP Series Rocker Switches offer unmatched versatility and reliability for any OEM or aftermarket application. The NP Series Switches are custom ordered, built to your specifications, with nine circuit diagrams to choose from, two switch styles, two voltage levels, four different identification lens colors, and over two hundred different standard graphics available.

Additionally, the switches can be assembled as a complete module, with two to six switches. The modules can also include custom-ordered indicator lights, or Euramtec's S-4613 rheostat for a dimming feature.

  • Specifications
  • Photos
  • 3D PDF
  • Technical PDF

9 circuit diagrams are available with or without illumination.
Illuminated flush mount switches come in either single or double intensity for situation and
in-function lighting.
The NP flush mount switches require the use of the A-82253X-X series bezels for mounting.
All of the NP series flush mount switches use hot stamped lens inserts for identification.

Contact Ratings:
20A, 12VDC & 15A, 24VDC
Endurance:
50,000 Cycles @ 20A, 12V
20,000 Cycles @ 15A, 24V
Bulb Type:
T-1.75, 1.2W, wedge base bulb in 12 or 24 volts.

Connector: W-RT10-4848
Terminal: W-823023

Replacement Parts:
Socket for Bulbs: W-4424
12V Bulb: W-85512
24V Bulb: W-84674
