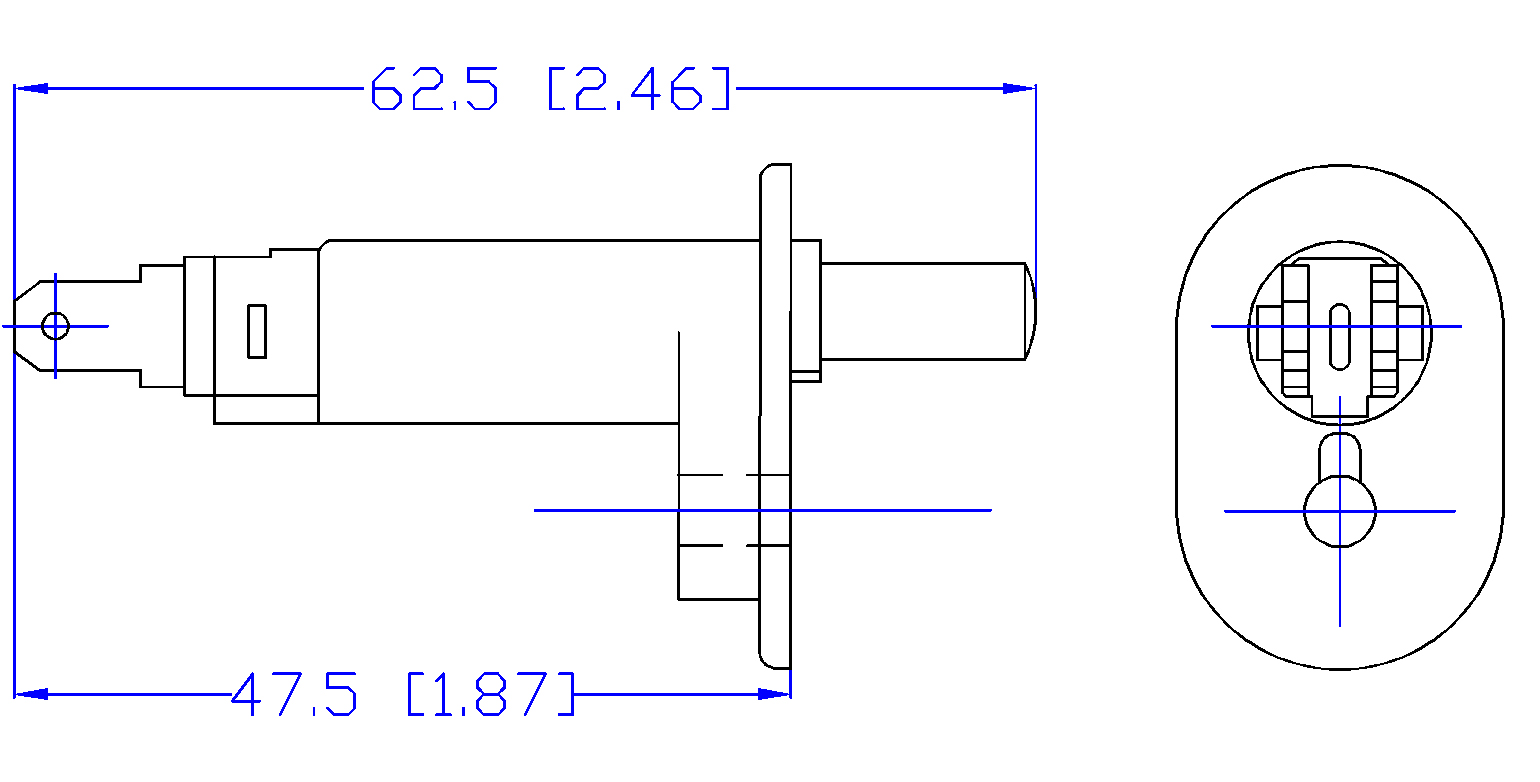

S-206 Door Jamb Switch

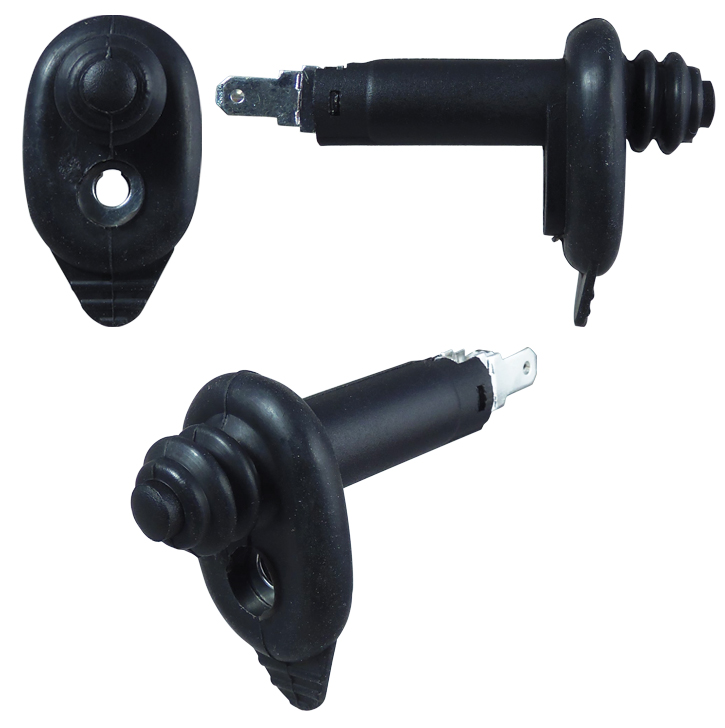

The S-206 is a more simplified version of the S-4594, with two blade terminals stamped from a single piece of stainless steel. Most notably, all the contact components of the S-206 are enclosed inside the switch housing, except for the blade terminal ends. Includes a rubber boot.

  • Specifications
  • Photos
  • 3D PDF
  • Technical PDF

Normally Closed SPST
Door Jamb Switch

Contact Rating: 2A, 12VDC
Endurance: 50,000 Cycles
Operating Force: 1kgf [2.2lbf/9.79N]

Connector: W-ST1-013
Terminal: W-ST-710

Includes Rubber Boot for Added Durability
