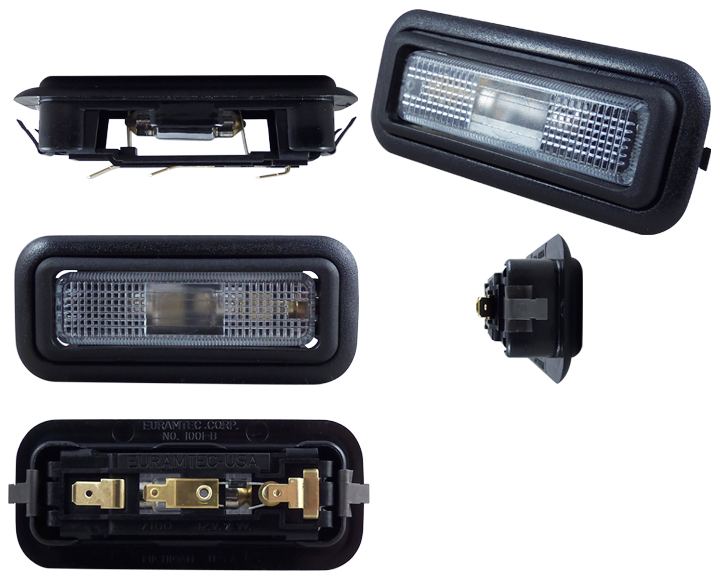

A-7180 Interior Light

The versatile 7180 Flip Light is the perfect choice for many map, reading, and courtesy light applications. The unique switched lens concept allows the light to be directed and controlled by the lens. The 7180 can be mounted directly or with the optional clip in bezel.

  • Specifications
  • Photos
  • 3D PDF
  • Technical PDF

Flammability: FMVSS 302/ISO 3795
Safety Radius: FMVSS 201/CEE-7460ADR21
RVIA: UL 23/T-12 (TE 15943)
Bulb Type: 5W, 12V Festoon Style Bulb

Positive Grounding Version: A-7180-F

Optional Mounting Bezel: W-1001-B
Optional Mounting Clip: W-10146

Complete Assembly: A-7180-BC

Replacement Bulb: W-7180-RB5
