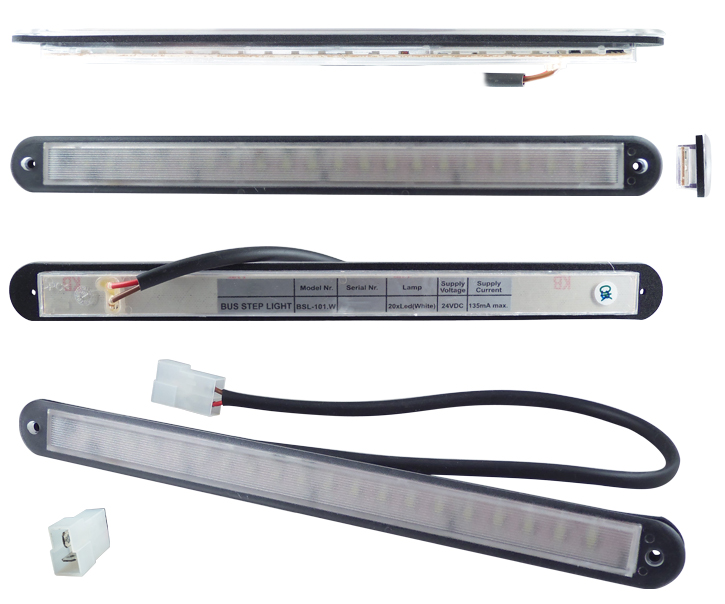

S-BSL-101-XX LED Step Light

The BSL-series Step Light contains all of the features of the BAL Aisle Light, but in a larger size. The BSL contains 20 super-bright SMD LEDs that can be ordered in Blue, Green, Yellow, Red, or White color, or a combination of alternating colors. The BSL Step Light also contains a current limiter for constant light level, and is available in 12 or 24VDC.

  • Specifications
  • Photos
  • 3D PDF
  • Technical PDF

LED Bus Aisle Light

Available in 12VDC or 24VDC operating voltage
Available in multiple colors

12VDC Specs:
Nominal Supply Voltage: 12VDC
Supply Voltage Range: 9-16VDC
Supply Current:

  • 90mA (B, Y, R, W models)
  • 60mA (G model)
    • Life: 50,000hrs

    24VDC Specs:
    Nominal Supply Voltage: 24VDC
    Supply Voltage Range: 18-32VDC
    Supply Current:
  • 30mA (B, Y, R, W models)
  • 20mA (G model)
    • Life: 50,000hrs

    Dimensions: 85x30x15mm
