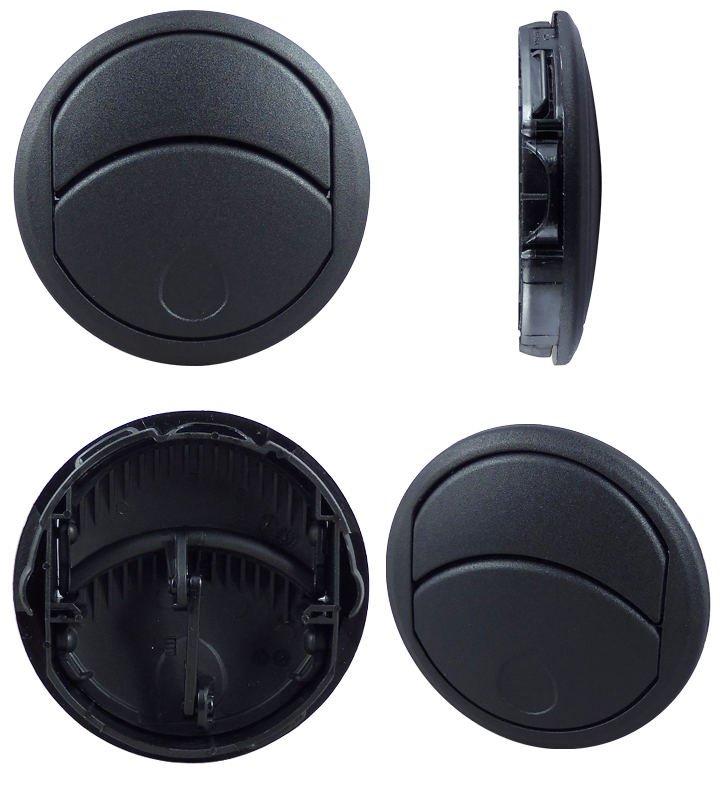

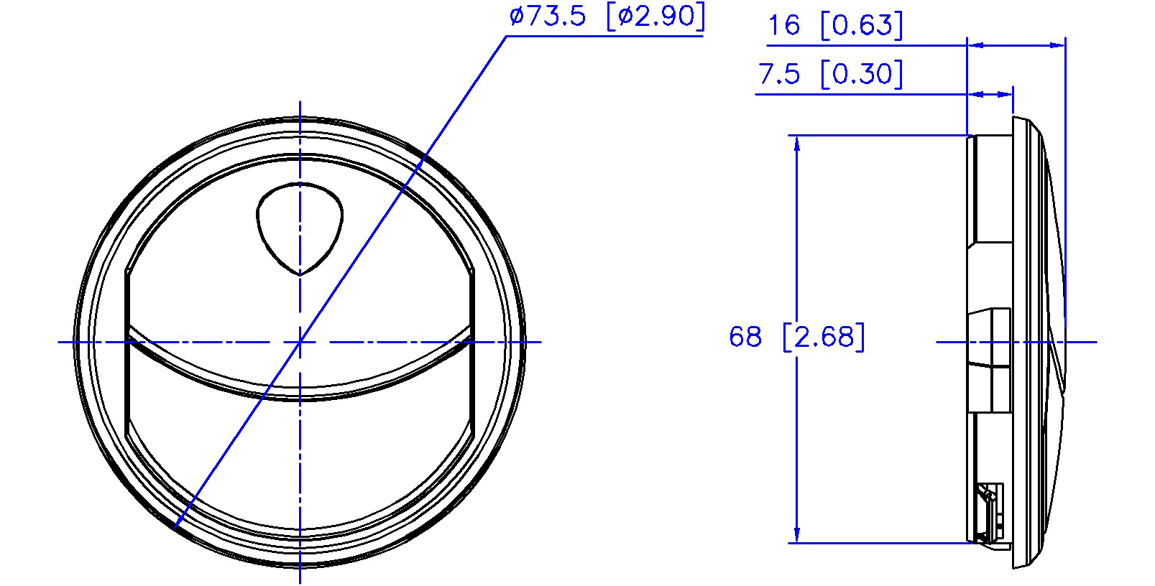

The 34011200 Air Diffuser is similar in size to the P.236 Air Vent, but has a much more shallow installation depth less than 8mm. Made from a polyamide/fiberglass blend for superior heat resistance.
Specifications
Photos
3D PDF
Technical PDF
Material: PA66 + GB30
Color: Black
Panel Thickness: 2.5 mm (0.10 in)
Air Flow Opening: 1,958.0 mm2 (77.09 in2)
Certifications: 95/98/EC for Flammability
