S-ACT-024N-PTC1 Door Actuator

The S-ACT-024N-PTC1 Actuator has a force of 24 Newtons (5.4lbs) and is the most compact light-duty actuator Euramtec carries. Most notably, the ACT-024N Actuator contains a thermal circuit protection to preserve the motor in the event of an over voltage or seized condition.

  • Specifications

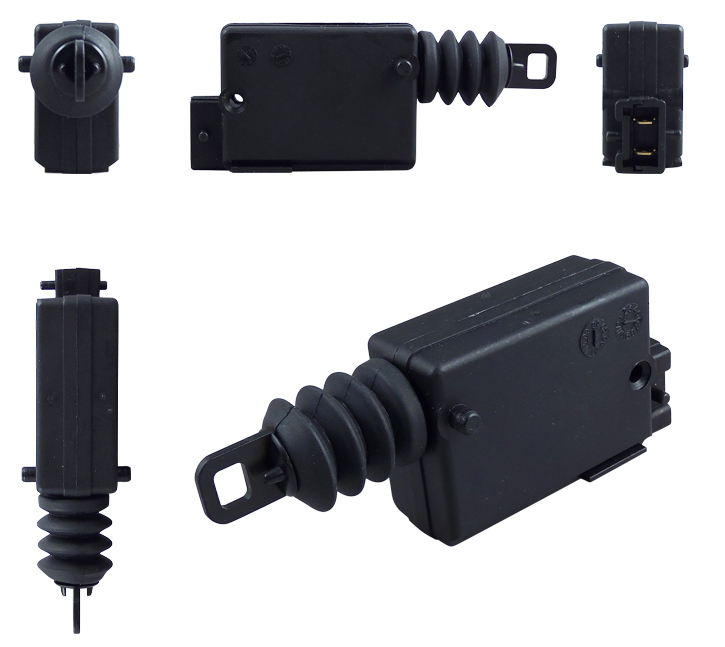

  • Photos
  • 3D PDF

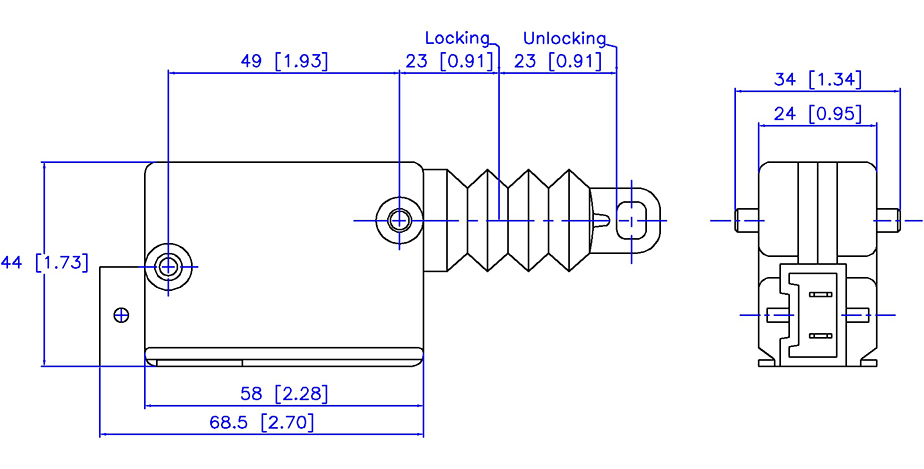

  • Technical PDF

Gear Motor Driven Actuator w/Thermal Circuit Protection (w/o clutch)
Force: 24 Newtons/5.40 lbs.
Voltage: 9 to 16 VDC
Normal Current Draw: 2A
Endurance: 30,000 Cycles
Operational Temperature Range: -30°C to +85°C

Connector Pigtail: A-ST3-02
Connector: W-ST3-443-22
Terminal: W-ST-710
