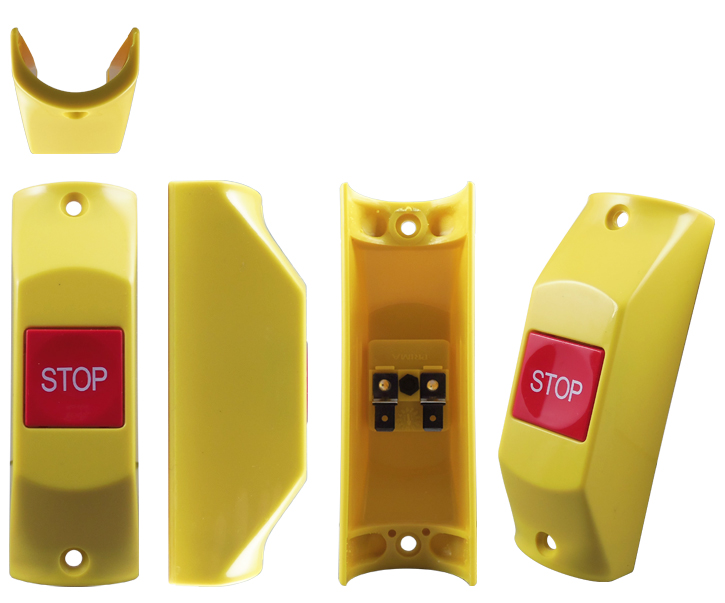

P.105 Stop Request/Call Button

The P.105 is ideal for stanchion-mounted applications. It is available in multiple body and button color combinations and can be made with a variety of function graphics. The P.105 can be ordered for 35mm (1.4”) or 40mm (1.6”) diameter tubing, and fit 30mm (1.2”) tubes with an P.104 spacer.

  • Specifications
  • Photos
  • 3D PDF
  • Technical PDF

Material: ABS Body, Polyamide Button

Available for 35mm (1.4") or 40mm (1.6") Tubing.
Can fit 30mm (1.2") Tubing with P.104 Spacer.

Available Body Colors: Black, Brown, Grey, Blue, Red, and Yellow
Available Button Colors: Blue, Red, Orange, and Yellow

Available with various button graphics and optional Braille.
