EasySTOP Control Unit

In cooperation with Prima Industries of Italy, Euramtec Corporation is supplying North America with the revolutionary wireless EasySTOP Request System. The patented EasySTOP system consists of a control unit and ultrasonic pushbuttons. The pushbuttons emit an ultrasonic frequency that is received by the control unit, activating the stop request system. The pushbuttons are completely wireless requiring no power, eliminating the need for unnecessary weight and cost from wire. The EasySTOP system responds to three frequencies, STOP, ADA, and an optional third channel.

Control unit is available in panel mount or flush mount.
  • Specifications
  • Photos
  • 3D PDF
  • Technical PDF

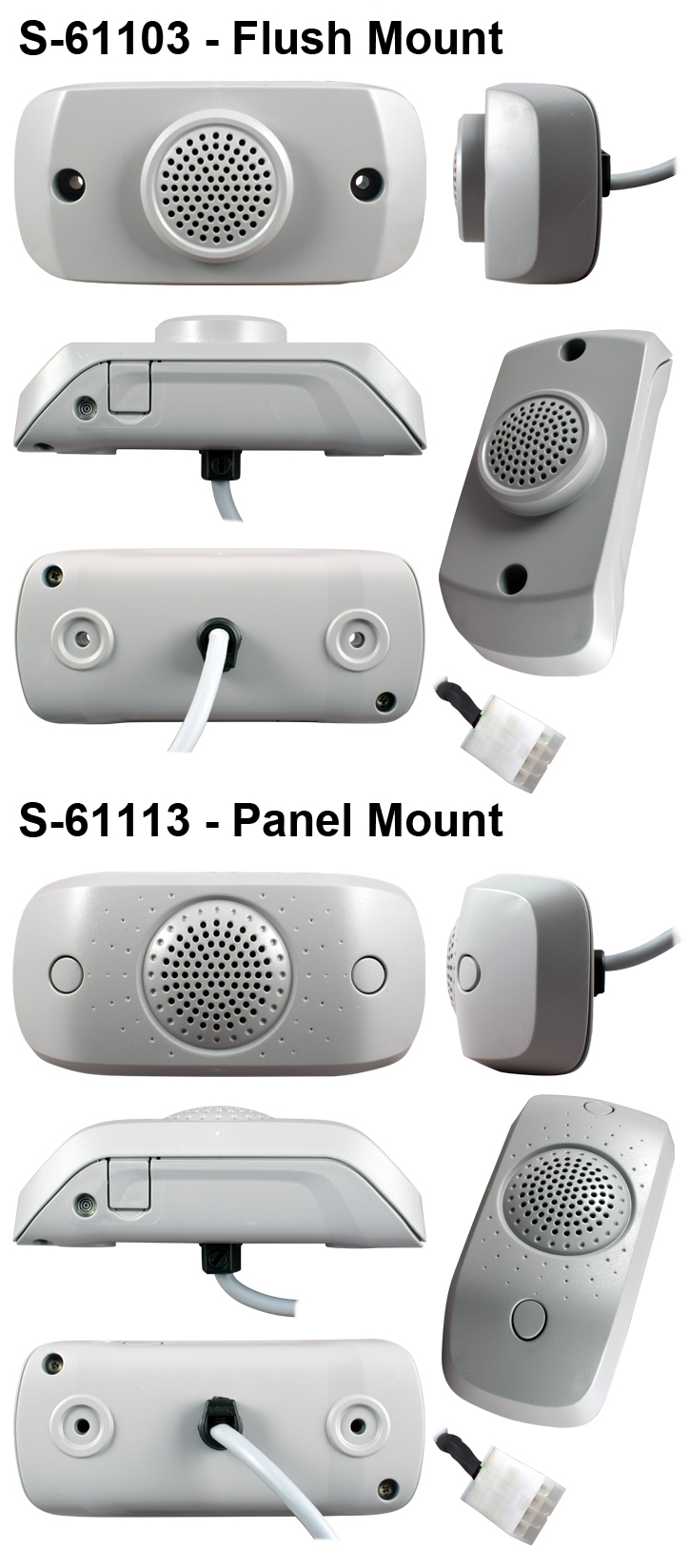

S-61103 - Flush Mount
S-61113 - Panel Mount

Operating Voltage: 12 or 24VDC
Operating Current: 0.12A
Frequency Channels:
STOP - 22kHz, Handicap - 17kHz, Optional - 29kHz

Certifications:
95/28/CE
2000/53/CE
2003/11/CE
2002/95/CE-ROHS
2002/96/CE-RAEE
SAE J1455

Functioning Temp.: -10/+80°C

Mounting hardware included.

Harness extensions are available in 5m, 10m, 20m, and 50m lengths.

Round Buttons
Slim Buttons
