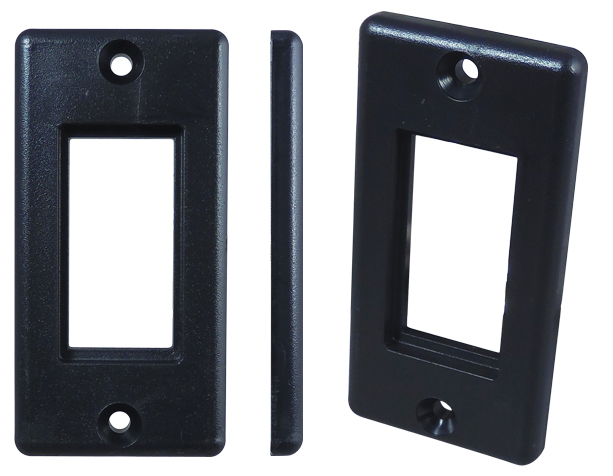

Low Profile Bezels

All of Euramtec’s Low-Profile Switches are compatible with the S-B5x series bezels. The bezels are made from black ABS and conform to FMVSS 302 for flammability. A selection of function printing is available on the bezels. Custom printing is also available upon request.

  • Specifications
  • Photos
  • 3D PDF
  • Technical PDF

Flammability Standard: FMVSS 302
Material: Black ABS

For Use With Switches:

  • S-1304M
  • S-1306
  • S-1737
  • S-1737L
  • S-1737W-12
  • S-3334L

  • Custom printing available upon
    request for a nominal charge.

    S-B51 (Single)
    38.10 mm x 76.20 mm (1.50” x 3.00”)
    Standard Printing:

  • A-B51x1 - Lock/Unlock
  • A-B51x2 - Power Sofa Up/Down
  • A-B51x3 - Power Sofa Fwrd/Back
  • A-B51x5 - Sofa UP/Down (Horizontal)
  • A-B51x6 - Up/Down
  • A-B51x8 - Glide Room In/Out
  • A-B51x9 - Lumbar (Horizontal)
  • A-B51x10 - Power Lumbar (Horizontal)
  • S-B53 (Double)
    63.50 mm x 76.20 mm (2.50” x 3.00”)
    Standard Printing:

  • A-B53x1 - Sofa Up/Down, Fwrd/Back
  • A-B53x2 - Sofa Up/Down, Fwrd/Back (Horizontal)
  • A-B53x3 - Up/Down, Up/Down
  • A-B53x4 - Up/Down, Unlock/Lock
  • A-B53x5 - Sofa Fwrd/Back, Unlock/Lock
  • S-B54 (Triple)
    88.90 mm x 76.20 mm (3.50” x 3.00”)
    Standard Printing:

  • A-B54x1 - Door Unlock/Lock, Sofa UP/Down, Fwrd/Back
  • A-B54x2 - Unlock/Lock, Up/Down, Up/Down
  • A-B54x8 - Glide Room In/Out
  •






    3D PDF requires Adobe® Reader® v7.0 or higher
