S-BAL-101-X LED Aisle Light

The BAL-Series Aisle Lights feature high-efficiency, super-bright SMD LEDs. The durable polycarbonate transparent case is water resistant, dust proof, and vibration resistant, ensuring a long life of the light.

The BAL aisle light can now be supplied in either 12 or 24VDC and is available with Blue, Green, Yellow, Red or White LEDs.

  • Specifications
  • Photos
  • 3D PDF
  • Technical PDF

LED Bus Aisle Light

Available in 12VDC or 24VDC operating voltage
Available in multiple colors

12VDC Specs:
Nominal Supply Voltage: 12VDC
Supply Voltage Range: 9-16VDC
Supply Current:

  • 90mA (B, Y, R, W models)
  • 60mA (G model)
    • Life: 50,000hrs

    24VDC Specs:
    Nominal Supply Voltage: 24VDC
    Supply Voltage Range: 18-32VDC
    Supply Current:
  • 30mA (B, Y, R, W models)
  • 20mA (G model)
    • Life: 50,000hrs

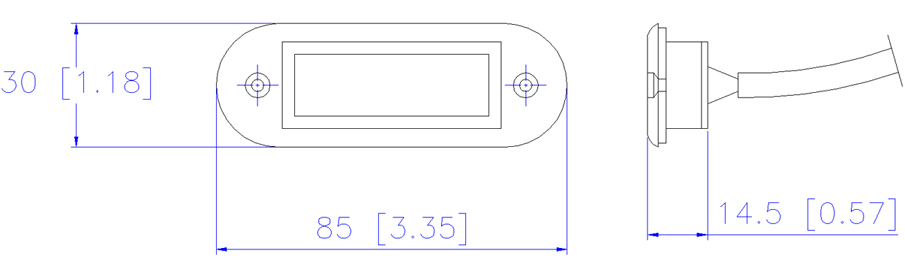

    Dimensions: 85x30x15mm
